Products - Automation - IFA - UNIQO 160


Fully automated IIFT system – from primary sample to analysis

For research use only. Not for use in diagnostic procedures.

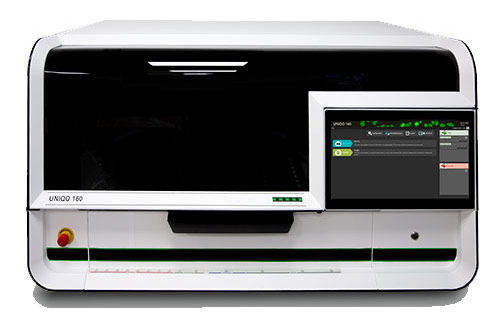

The UNIQO 160 provides full IIFT automation of the next generation – from the primary sample to the microscopy analysis with only one instrument. This all-in-one solution maximizes the efficiency of the entire IIFT process, encompassing sample preparation, incubation, washing and mounting of slides as well as image acquisition and analysis.

Up to 160 primary samples and 18 slides can be processed in one run on the compact benchtop device. During loading, samples, reagents and slides are automatically identified and assigned by their barcodes. The slides are protected from drying out by automated mounting after incubation, brilliant fluorescence images are produced from the first to the last sample, even with large worklists. The integrated high-quality microscope with automatically changing objectives (4x, 10x, 20x) ensures optimal recording parameters for each product. This results in brilliant fluorescence images, which can be easily evaluated.

  • Fully automated processing system from primary sample to final result analysis for up to 160 samples and 18 slides
  • Flexible loading as well as complete traceability of samples, reagents and slides through automated barcode scanning
  • Brilliant fluorescence images due to automatically mounted slides and the integrated high-quality microscope unit with automatically changing objectives (4x, 10x, 20x)


  • Simple and secure analysis generation for up to 160 IIFT samples, 288 dilutions and 18 slides per run
  • Reliable assignment of samples, reagents and slides due to integrated barcode scanners
  • Flexible loading with up to 20 controls, 4 dilution buffers and 9 bottles of conjugate as well as mounting medium
  • Efficient pipetting of samples and reagents as well as washing of slides with the integrated three-needle system
  • High-quality recording of fluorescence images by means of autofocus and three automatically changing objectives (4x, 10x, 20x)


Operation full HD touch-screen monitor, 15 inches
Communication with LIS Compatible
Electrical data 100–240V AC
Dimensions 47.24 in x 35.43 in x 27.56 in
Weight 330 lbs

For product information, please contact the EUROIMMUN Sales Team

EUROIMMUN Product Spotlight

.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }
The UNIQO 160 provides full IIFT automation of the next generation
