ProciseDx Analyzer

trFRET technology for Therapeutic Drug Monitoring (TDM)

For in vitro diagnostic use. Rx only.

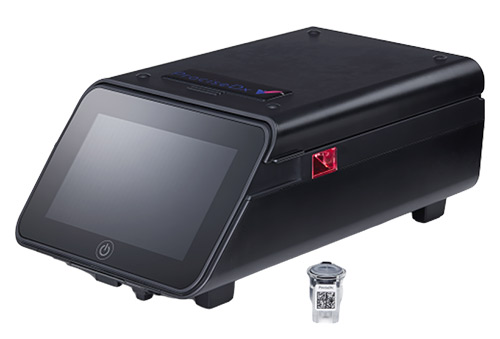

The ProciseDx Analyzer is a compact and easy to use instrument for the quantitation of drug levels in venous serum samples. It has a touch screen interface and external barcode scanning for sample identification and tracking. Using unique time resolved fluorescence resonance energy transfer (trFRET) and patented Lumiphore technology, high quality results can be obtained in less than 5 minutes.

ProciseDx Analyzer

Request a demo to see the ProciseDx Analyzer in action
Complete the form below and a EUROIMMUN team member will reach out to schedule an appointment.

    This platform is FDA cleared for use with Procise IFX and Procise ADL assay kits for the quantitation of infliximab and adalimumab.

    These products are not manufactured by EUROIMMUN. For more information, contact your local EUROIMMUN representative or visit www.procisedx.com.

    Specifications

    Dimensions 15 inch deep x 8 inch wide x 5.7 inch high
    (38.4 cm deep x 21 cm wide x 14.5 cm high)
    Weight 10 lbs (4.7 kg)
    Power Supply Input 100-240 VAC, 50/60 Hz, auto-ranging (US / International)
    Power Consumption 90VA
    Display 6 inch x 3.5 inch (15 cm x 9 cm) color LCD touchscreen
    7 inch (17.5 cm) diagonal
    Operating Temperature 59°F to 86°F (15°C to 30°C)
    Operating Humidity 20% – 85% RH noncondensing
    Patient Test Result Storage 250 tests maximum
    QC Results Storage 500 results maximum
    Calibration Results Storage 100 results maximum
    Fluorescence 0 to 65 x 106 RFU +/- 5% at 620nm
    Absorbance 0 to >3.5 OD +/- 0.3 OD at 575nm and 665nm
    Wi-Fi IEEE 802.11 ac/a/b/g/n
    2.4GHz/5Ghz
    WEP/WPA/WPA2
    Ethernet RJ45Connector (1)
    10/100/1000 BASE-T
